Engine Piston Rings Explained

What Are Engine Piston Rings?

Piston rings are essential components that separate the combustion chamber from the crankcase. They also regulate the amount of lubrication oil between the cylinder liner and the piston.

Why Do We Need Piston Rings?

Piston rings maintain a seal between the combustion space and the crankcase. The combustion space consists of a fixed cylinder wall and a fixed upper wall. Since it is not feasible to have a fixed lower wall, piston rings are employed to create a moving seal.

Piston rings are attached to the piston within recessed grooves, with a thin film of oil filling the space between the rings and the cylinder liner (the piston rings do not make direct contact with the liner). Thanks to this oil film and the fine clearances between the rings and the liner, the rings can maintain a tight seal while moving linearly up and down within the cylinder.

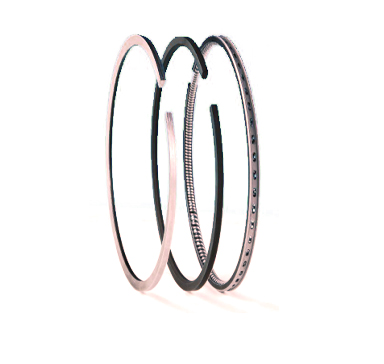

Piston Ring Types

Engine Piston rings are categorized into two main types:

Compression Rings

These rings create the seal between the crankcase and combustion space. Positioned closest to the combustion area, they must withstand significant pressure and temperature variations.

Scraper Rings

These rings regulate the amount of oil used for lubrication between the piston rings and the cylinder liner. Located further from the combustion space (beneath the compression rings), they are not exposed to the greater pressure and temperature fluctuations that the compression rings endure.

Engine Piston Ring Configurations

Most four stroke engines utilize three piston rings (two compressions and one scraper) whilst most two stroke engines utilize only two piston rings (one compression and one scraper).

Piston Ring Failure

Piston ring failure, or incorrect lubrication, can result in "blow-by," which allows gases to escape the combustion space and enter the crankcase. This condition is undesirable because it decreases engine efficiency by reducing the maximum peak pressure achieved during the power stroke. Additionally, the gases within the crankcase are exposed to higher temperatures and potentially elevated pressures, which could lead to a crankcase explosion. This threat is particularly significant for large two-stroke marine engines.

Piston Ring Maintenance

To ensure optimal performance, regular inspection and maintenance of piston rings are crucial. Signs of wear or damage, such as increased oil consumption or loss of power, indicate that piston rings may need replacement. Keeping the engine well-lubricated and using high-quality oil can help prolong the life of the piston rings.

Choosing the Right Piston Rings

When selecting piston rings, it's essential to consider the engine type, intended use, and specific performance requirements. Quality and compatibility with the engine’s specifications will significantly influence overall engine performance and longevity.

Conclusion

In summary, piston rings are vital for maintaining engine efficiency and performance. They prevent blow-by, regulate oil flow, and ensure that the combustion chamber operates effectively. For any inquiries about piston ring replacements or if you’re looking for a reliable supplier, please contact us. We are committed to providing high-quality engine components tailored to your needs.
